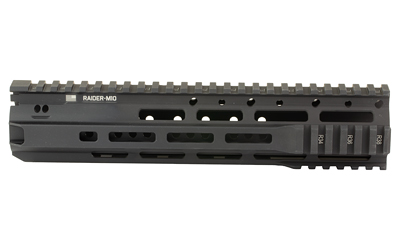

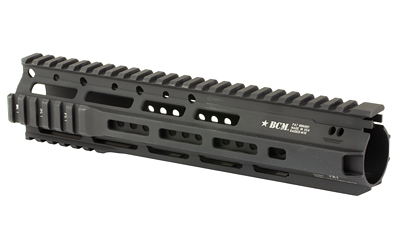

BCM RAIDER-M RAIL 10″ BLK MLOK

Description

The BCM RAIDER-M is a free-float handguard built for shooters who need a stable platform for stacked, mission-critical accessories — white lights, lasers, and electro-optics that must hold their zero through sustained use. It is not a minimalist rail for a bare carbine; it is designed around the assumption that you will mount things on it and that those things need to stay put.

The structural case for this handguard starts with its double-wall extrusion. Where a single-wall design flexes under lateral load, the RAIDER-M’s architecture distributes that stress across two walls, translating to a stiffer tube at a comparable weight. For accessories that depend on a repeatable return to zero — particularly laser aiming devices — that added rigidity matters in a way that lighter, thinner rails cannot guarantee.

BCM’s patented lock-up system (US Patent 8904691) addresses a problem common to free-float designs: the tendency for the handguard to shift fore and aft under recoil, or to cant away from the bore axis over time. Self-locking cross bolts apply clamping force at the 12 o’clock position, distributing pressure evenly around the barrel nut interface and keeping the top rail in continuous alignment with the upper receiver’s Picatinny surface. That continuous top rail is uninterrupted for the full length of the handguard, while six additional Picatinny channels at the 3, 6, and 9 o’clock positions cover the positions most likely to carry a light or foregrip. M-LOK slots fill the remaining real estate for lower-profile accessories. Ports along the body allow zip ties or MIL-SPEC cord to secure cable runs and sling mounts cleanly against the handguard, keeping the exterior snag-free.

Mounting hardware ships with the handguard. The handguard itself weighs approximately 9.5 oz, with the hardware adding another 2.3 oz.
