C&H PLT M&P 2.0 CR TO HOLO EPS

Description

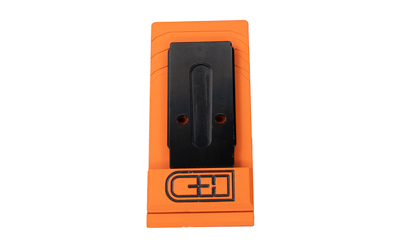

The C&H Precision V4 adapter plate is built for S&W M&P 2.0 C.O.R.E. owners who want to run a Holosun EPS or EPS Carry without sending their slide to a mill. The C.O.R.E. platform already cuts a receiver pocket into the slide, but that footprint does not natively match the EPS mounting pattern — this plate bridges the two without permanent modification to the pistol.

C&H Precision machines the plate from 6061 aluminum and applies a MIL-SPEC Type III hard anodize finish in black. That anodize process drives aluminum oxide into the surface rather than sitting on top of it, which resists wear at the optic-to-slide interface where bare metal would eventually gall. The plate runs .095″ to .099″ thick, keeping the optic as low as the host platform permits and reducing the height-over-bore penalty that stacked mounting solutions accumulate. All mounting hardware is stainless steel, and because the screws are standard replaceable fasteners rather than proprietary captive hardware, a stripped or damaged screw does not retire the plate. Three 6-32 x .500 M3H optic mounting screws are included. The plate is designed and machined in-house by C&H Precision in Coastal Georgia on HAAS CNC equipment, with each unit passing through multiple inspection stages before shipping. C&H recommends dry-fitting all components before final installation, since tolerances in the slide cut, the optic body, and the plate itself interact — a step that catches interference before any thread locker is applied.
