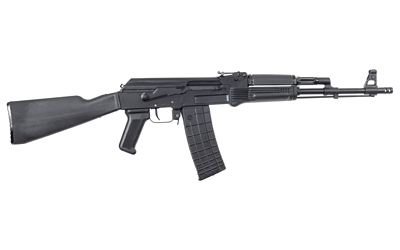

Arsenal Firearms SAM5 5.56 NATO Milled Receiver Rifle

Description

The SAM5 is Arsenal’s answer to a question serious AK builders have been asking for decades: what happens when you build a 5.56 rifle from the ground up on a genuinely forged-and-milled receiver rather than machined bar stock? The receiver blank is hot-die hammer forged at Arsenal’s Bulgarian factory, a process that aligns the steel’s grain structure and eliminates the internal voids that cooling can introduce when casting or machining from bar. The blank then spends over five and a half hours under CNC milling before it ever sees an assembly line. The result is a receiver that carries its strength from the metallurgy, not just from wall thickness.

The barrel is cold hammer-forged on Steyr-derived equipment and hard-chrome lined through both the bore and chamber. Chrome lining resists corrosion from moisture and corrosive-primed ammunition, and it sustains its surface hardness across a service life that a nitride or phosphate barrel typically cannot match at high round counts. The 1:7-inch twist rate stabilizes heavier 5.56 projectiles — 62-grain M855 and 77-grain OTM loads seat into that twist comfortably — while remaining accurate with standard 55-grain ammunition. The left-hand 14x1mm muzzle threads accept the included AK-351 muzzle brake and are compatible with a range of metric-pattern AK muzzle devices.

The fire control group is the Fime Enhanced unit, which replaces the standard AK fire control parts with components tuned for a cleaner break. The intermediate-length trapdoor buttstock gives a 13.4-inch length of pull, splitting the difference between a standard AK stock and a carbine-length setup. A scope rail is mounted to the left side of the receiver in the standard AK side-rail pattern, leaving iron sight use unaffected. Arsenal offers the SAM5-67 in Matte Black, Plum, OD Green, Desert Sand, and Covert Gray furniture.

Shipping and availability: This item cannot be shipped directly to Rhode Island and Washington. It cannot be sold into Illinois and Oregon. Check your state and local requirements before ordering. This item must ship to a licensed FFL dealer for transfer.
