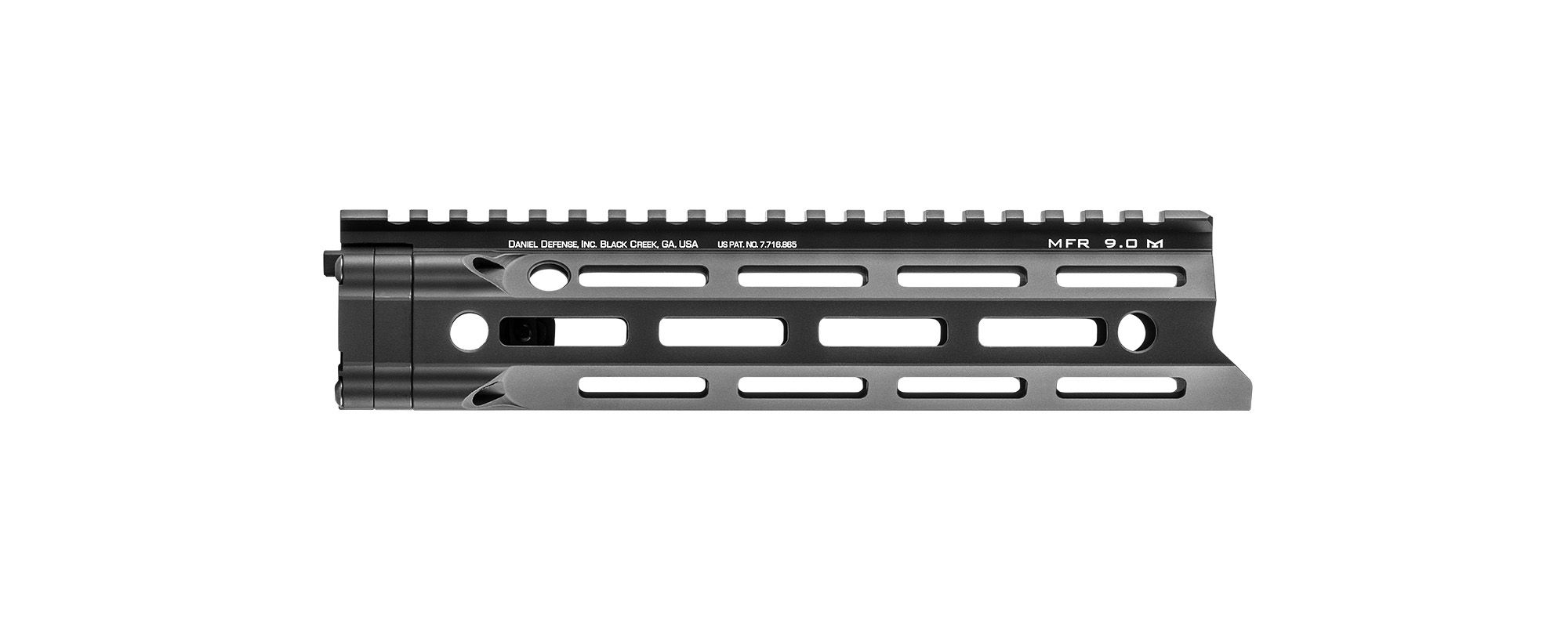

DANIEL DEFENSE MFR 9.0 M-LOK ASSEMBLY BLACK

Description

The Daniel Defense MFR 9.0 is a free-floating handguard built for shooters who want a slimmer, lighter front end without giving up rigidity or long-term durability. At roughly nine inches of usable length, it suits carbine and mid-length builds where a full-length rail would add unnecessary weight forward of the muzzle, shifting the balance point in a way that slows transitions and increases fatigue over an extended range session.

Rather than relying on a delta ring and snap ring, Daniel Defense uses their patented Bolt-Up System. The handguard threads onto a dedicated steel barrel nut and is then secured by Grade 8 fasteners that pull the rail body tightly against the upper receiver. The result is a connection that resists torquing under bipod pressure or sling tension without adding bulk to the outside diameter — the profile stays narrow enough that a standard hand wrap is comfortable even for smaller hands.

Attachment real estate follows the M-LOK standard across seven positions, which means accessories mount directly into the aluminum body rather than through a secondary rail section. That keeps the outer diameter consistent and avoids the snag points that raised rail segments introduce. When a Picatinny section is needed — for a light or angled foregrip — M-LOK-to-Picatinny inserts drop in without tools. The top of the handguard runs a continuous Mil-Spec 1913 Picatinny rail that indexes directly with the upper receiver, so optic height remains consistent whether the upper is on a bench or a duty rifle.

The entire body is machined from 6061-T6 aluminum and finished in Military Specification Type III Hard Coat Anodize, the same process used on mil-contract hardware. Anti-rotation tabs are included and simplify alignment during installation. Both the barrel nut wrench and the required Allen wrench ship with the rail.
